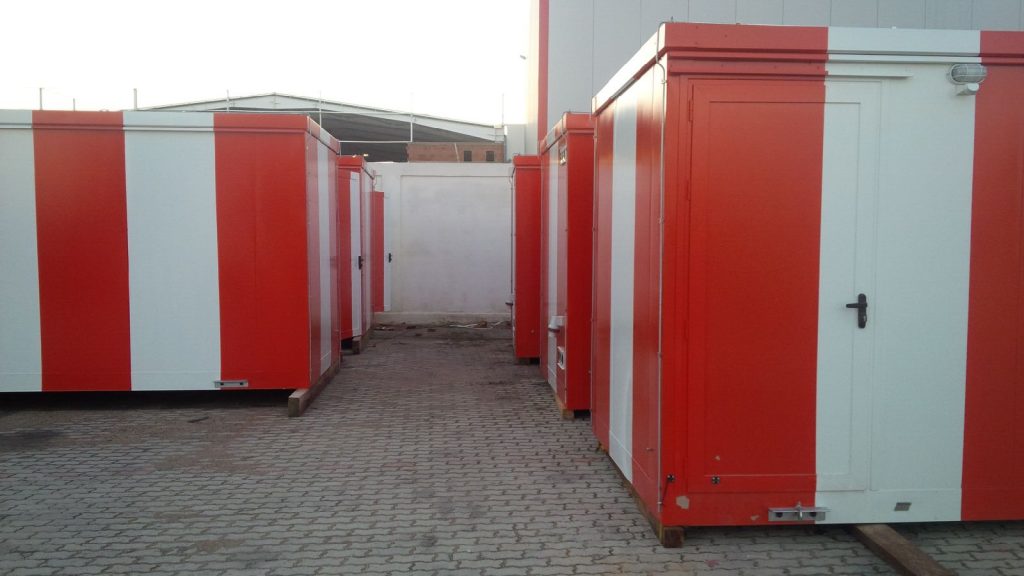

Shelters
- Structure:
- Different standard dimensions 20 Feet or 40 Feet, 4×2.5×2.8m, 8x5x2.8m, 12x4x2.8m or customized size as per specific requirements.
- Frame and the base made from hot dipped galvanized steel profiles
- Walls made from 80mm polyurethane panels with external cladding from galvanized steel coated with 200μm thick plastic cover
- Features / Additional devices:
- Steel or aluminum profile doors equipped with a security lock, antipanic bar, door stay mechanism and a hook and eye security point in the fully opened position.
- Cable entry device for cables and wave guides
- Overhead cable trays in the internal shelter’s perimeter near the ceiling (various widths) secured on the internal shelter’s walls by DIN Rails
- Fire Detection and extinguishing system
- Electromagnetic protection by Faraday Cage
- Environmental sensors (Data logger, flood, temperature, intruder, moving, etc)
- Equipotential copper grounding bars 300x50x5mm
- Electrical Infrastructure (Lights, power sockets, distribution panel)
- Surveillance cameras (High resolution Indoor and outdoor cameras, NVR)
- Data network with LAN sockets
